Novastar Mctrl700 LED display sender
$650.00 & Free Shipping
Novastar Mctrl700 LED display sender

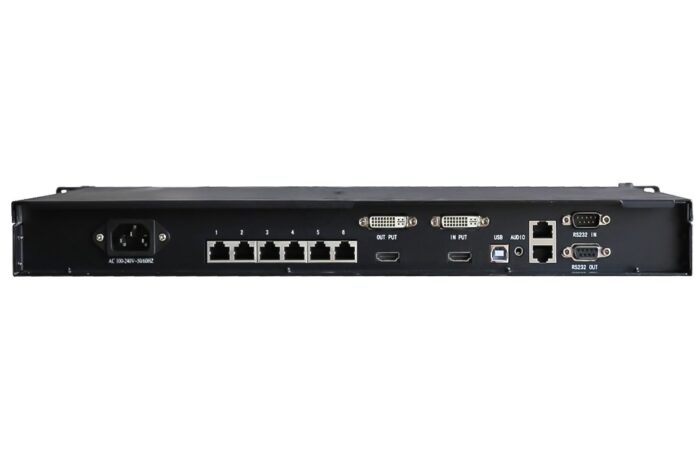

MCTRL700 is a large on-board controller from Nova. The specific features are as follows:1) Support 1 channel of DVI video source input. 2) Support 1 HDMI video source input. 3) Support 1 channel of audio input. 4) Support 6-channel Gigabit Ethernet port output, each network port supports up to 650,000 pixels. 5) Support 1 channel DVI video source output for cascading or monitoring. 6) Support 1 HDMI video source output for cascading or monitoring. 7) Support 1 way port USB control interface. 8) Supports RS232 IN and RS232 OUT control interfaces for device cascading. 9) Support 2 channels of 100M network port, with square port USB interface, device cascading. 10) Maximum load resolution 2048×1152@60Hz or 1920×1200@60Hz.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Nova MCTRL700 LED Display Controller
Novastar MCTRL700 LED Screen Video LED Control Box. The specific features are as follows:
Novastar MCTRL700 LED Screen Video LED Control Box Parameter:
| Input indicator | ||
| Port | Quantity | Resolution specification |
| DVI IN | 1 | VESA |
| HDMI | 1 | EIA/CEA-861 standard, compliant with HDMI-1.3 standard, HDCP support |
| Machine specification | ||
| power consumption | 16W | |
| Operating temperature | -20℃~60℃ | |
| Working humidity | 0%RH~95%RH | |
| Net Weight | 2.9 Kg | |
| USB Line | 1.5 M | |
| DVI Line | 1.5 M | |
